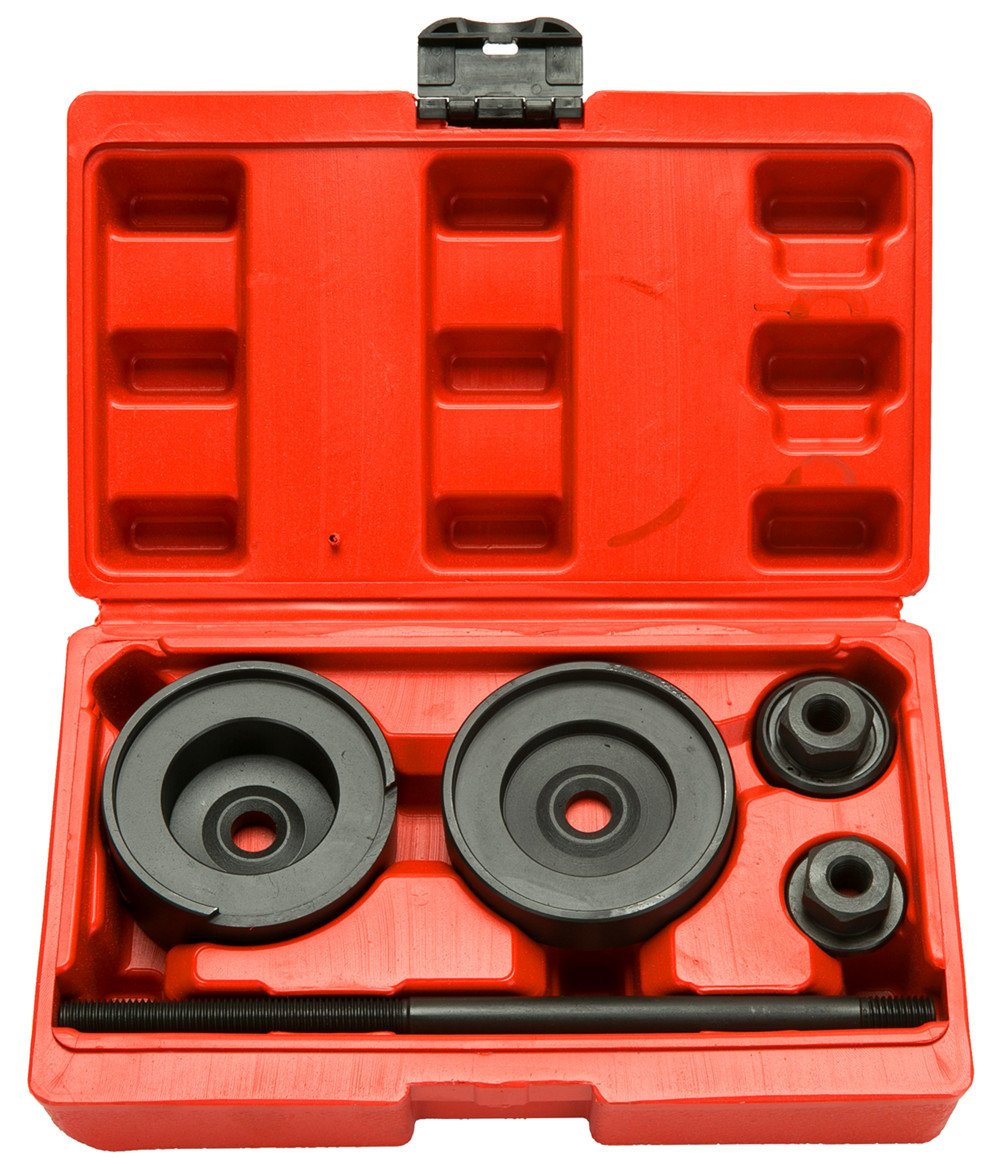

8MILELAKE Rear Suspension Bushing Removal & Installation Tool Kit - Compatible with VW Audi A3 A4 A5 - Professional Auto Repair Tool for DIY Mechanics & Shops
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:37854648
Product Description
Product Features: Blackened oxide finish to resist corrosion Bearing assisted force nut for ease and longevity of tool Tool allows the bush to be fitted quickly and easily without causing damage while axle still on vehicle For use on Audi A3; VW Golf IV; Bora 1.4/1.6/1.8/2.0 and 1.9D(2001~2003) Recommended Instructions of use: Step 1: Securely support the vehicle with jack stands or frame lift, then remove the rear wheels per factory manual Step 2: Remove both front mounting bolts from the rear axle mounting bracket Step 3: Pull the front end of the trailing arm down the mounting bracket and wedge into position, using a solid object between the arm end and the underside of the vehicle. Step 4: Mark the exact position in the arm of the rubber mounting Step 5: Remove the old mounting bush from the trailing arm Step 6: Lubricate the screw threads of the tool Step 7: Align the Y mark on the new bush with the mark on the axle trailing arm Step 8: Assemble the bush suspension tool and insert the new bonded mounting into position, adapter is lipped and designed to sit flush against the trailing arm Step 9: With a 24mm socket on ratchet slowly turn the thrust bearing to pull the new mounting into the rear axl Step 10. Re-assemble and Repeat steps 3-9 for the other side
Product Features
Tool designed for replacing rear axle bonded rubber mounting bushing(s) while on car
without need for removing rear axle assembly
For use on Bora 1.4/1.6/1.8/2.0 and 1.9D(2001 to 2003)
Tool used for removal and installation
For use on Audi A3 VW Golf IV
Customer Reviews
This worked to install the bushings woth ease, especially after freezing them for awhile. However, this tool will not remove the bushings without an additional spacer/cup. The tool worked well for installing but the threaded rod ended up shearing its threads off. I have contacted the company with no response. Seems a bit sketchyThis is exactly what you need to install new rear axle bushings for mk4(1999.5-2005) VW's. It's useless for removing old bushings, but it's not that difficult to do. I was able to wrench in a new set of bushings on my 2000 VW Golf faster than any homemade rig I've used in the past.I used this tool to replace the rear axle bushings on my 2000 Golf and it worked perfectly. Only reason I didn't give 5 stars is the description says "Removal", but on its own, it does nothing of the sort.I was able to use a 2" electrical conduit coupler and the threaded rod from the tool to do the removal, but that's not how it was designed to work.Works more for installing the bushings. Fairly useless to extracting. Bushings are always rust-welded into the sleeves and only a torch and chisel & hammer will remove them. But for pulling in the new bushing straight and even, their perfect!!it wont remove bush i made an adaptor using large 3/4 " drive 50mm socket , and long extension to whack it out, and then put new bushes in deepe freezer for 15 hrs before pressing them in,with this tool, used on my golf 4 michael s africaVery smooth tool. Workes perfectly for my 01' Golf TDI. Go slow and make sure the bushings are going in straight as they're all composite bodied and will crack if forced in crooked. This works for OEM style rubber bushings.I’m a technician in a shop got this in hopes of doing a job over the weekend. Poorly made failed after partial install of second bushing bent threaded rod and deformed it would not purchase again need to warranty or send my money backWorks greatThis tool is a lifesaver. Without it, you’ll be trying different ways to get the bushing in and end up no where. Well worth the money.2000 gulf rear bushing install only have cut out old bushing.I used it for removing / installing axle bushings.it's not bad.did the jobWorked great on 2003 jetta
